寬系列焊接彎板鏈

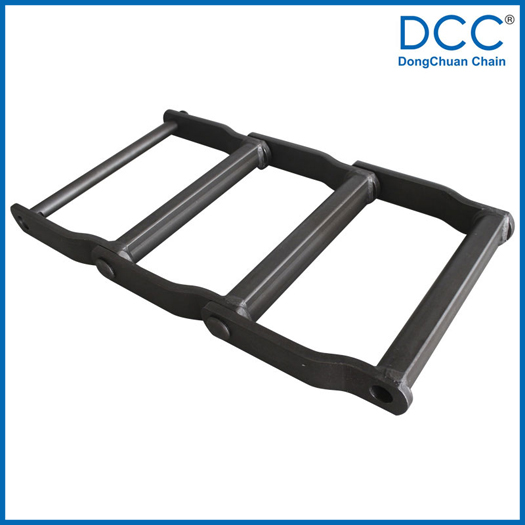

http://jlsa.com.cn/uploadfiles/211.149.195.244/webid148/source/201507/20342.jpg
  • 寬系列焊接彎板鏈

  •   東傳全國咨詢熱線:
  • 0519-88710908
  • 在線咨詢
    • 寬系列焊接彎板鏈
詳細描述:

焊接彎板鏈

寬系列焊接彎板鏈的小端相對窄系列來說比較寬,小端內寬最小也有107.1MM,最大能達326.1MM。我公司對特殊使用環境的鏈條給鏈板﹑銷軸施以表面高頻處理,使之具備更好的耐磨性和更高的強度;在腐蝕性較大的場合使用的,我們選用不銹鋼材質。板厚從9.5MM-12.7MM,抗拉強度可以從170KN到360KN有不同選擇。

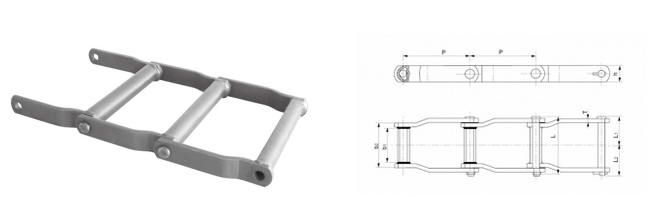

寬系列焊接彎板鏈



Chain no.Pitch P (mm)Sizes of bushing (max.) mmDiameter of pin d2 (max.) (mm)Height of sidebar h2 (max.) (mm)Inner width of narrow end b1 (max.) (mm)Outer width of narrow end b2 (max.) (mm)Thickness of sidebar T (max.) (mm)Tensile strength Q (min.) (KN)Weight per meter q (kg/m)
WDH110152.4D18.938.1231.5263.59.522016.9
WDR110152.4D18.938.1231.5263.59.517016.9
WDH112203.2D18.938.1231.5263.59.522014.1
WDR112203.2D18.938.1231.5263.59.517014.1
WDH120152.4A22.0750.8222.5260.3512.736029
WDR120152.4A22.0750.8222.5260.3512.731029
WDH480203.2A22.0750.8285.75323.8512.736027
WDR480203.2A22.0750.8285.75323.8512.731027
WDH580203.2E25.450.8285.75323.8512.736026.6
WDR580203.2E25.450.8285.75323.8512.731026.6
WDH104152.4D18.938.1107.1136.59.522015.1
WDR104152.4D18.938.1107.1136.59.517015.1
WDH113152.4C22.0738.1228.6269.8812.720316.6
WDR113152.4C22.0738.1228.6269.8812.716516.6
WDH116203.2B22.0744.45326.1358.89.524517.8
WDR116203.2B22.0744.45326.1358.89.520317.8



Note: For details about bushing size, please contact us directly.

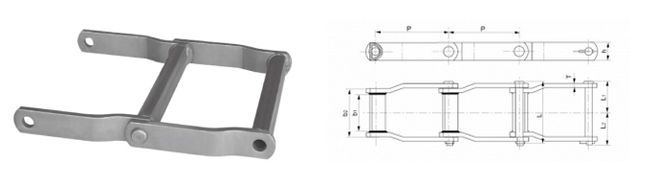

寬系列焊接彎板鏈

Chain no.Pitch P (mm)Sizes of bushing (max.) (mm)Diameter of pin d2 (max.) (mm)Height of sidebar h2 (max.) (mm)Inner width of narrow end b1 (max.) (mm)Outer width of narrow end b2 (max.) (mm)Thickness of sidebar T (max.) (mm)Tensile strength Q (min.) (KN)Weight per meter q (kg/m)
WDH2210155.85D18.938.1236.5263.59.522016.9
WDR2210155.85D18.938.1236.5263.59.517016.9
WDH2380207.29A22.0750.8285.75323.8512.736026.7
WDR2380207.29A22.0750.8285.75323.8512.731026.7
WDH2480203.2A22.0750.8285.75323.8512.736027
WDR2480203.2A22.0750.8285.75323.8512.731027

Note: For details about bushing size, please contact us directly.

Related Names
High Strength Steel Chain | Agricultural Welded Chain | Steel Transfer Chain
